Bodet Timebox X1 time recording system

TimeBox X1

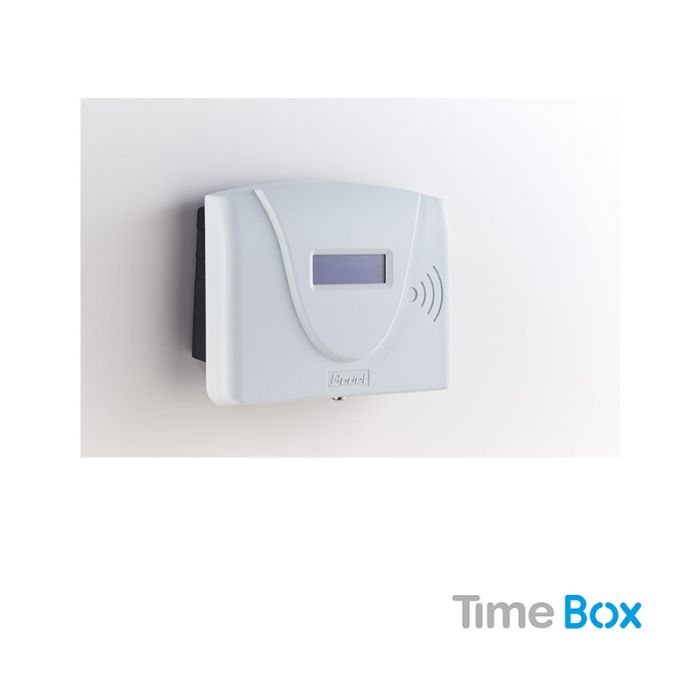

TimeBox is a time recording terminal that stores up to 10,000 bookings. The bookings are transferred to the PC via USB stick or RS232 cable. The terminal includes a contactless reader and a precise clock. It is designed for wall mounting and is connected to an external power supply unit. Its firmware can be updated using the USB stick.

Scope of delivery

Each terminal is supplied in its original packaging, including 1 RS232 connection cable (3 meters long), 1 USB stick, 1 9 VDC power supply unit, 1 instruction manual

Technical details

• Memory capacity: max 10
• 000Data
• backup
• : 10 yearsID card reader
• : Contactless, 125 kHzReading distance
• with ISO ID card: 4 cmDisplay
• : LCD, 2 lines of 12 characters, blue backlightMains powered
• : 110-240 VAC 50-60 Hz 0.3
• ANominal current:
• 300 mACable length
• : 1.5
• cmTerminal
• power supply
• : 9 V 5 % 0.66
• ASProtection class: class
• IIPower supply scheme: scheme TT or TNProtection index
• : IP 20Operating temperature
• :
• 15 to 90%, non-condensingTime fuse
• :
• Switching relay (1 NO and 1 NC contact):
• Switching voltage 230 VAC 50 Hz / 60 Hz 1 A maximum safety extra-low voltage (SELV) possibleCable
• to relay terminal: 1.5 mm2 to 2.5 mm2, stripped over 5 mmSerial
• PC connection: RS232 / RJ11 connector (3 meters supplied)
• USB port: For USB stick (FAT, FAT32)
• Internal fuse: Automatically reclosing internal fusesWeight
• : 300 gStandard
