Elatec TechTracer Kit TWN4 MultiTech 2 BLE-PI + TWN4 MultiTech-P LEGIC 45

The TechTracerKit TWN4 MultiTech was developed for the primary purpose of determining the RFID transponder technology at the customer by showing the customer card and reading the result on the PC.

The Elatec TWN4 MultiTech RFID reader and writer was designed as a migration reader to address the numerous transponders used worldwide from low frequency (125kHz) such as HIDProx to high frequency (13.56MHz) such as HID iCLASS and LEGIC. It is a reader capable of reading all technologies, simplifying supply chain logistics and reducing costs.

• Configured with the Tech Tracer application

• Operates on three frequencies: 125kHz, 134.2kHz and 13.56MHz

• Reads more than forty transponder technologies simultaneously (HID Prox, HID iCLASS , MIFARE Classic, MIFARE DESfire, LEGIC Advant, LEGIC Prime, Sony FeliCa, NFC)

• Powerful SDK for writing applications directly to the TWN4 reader

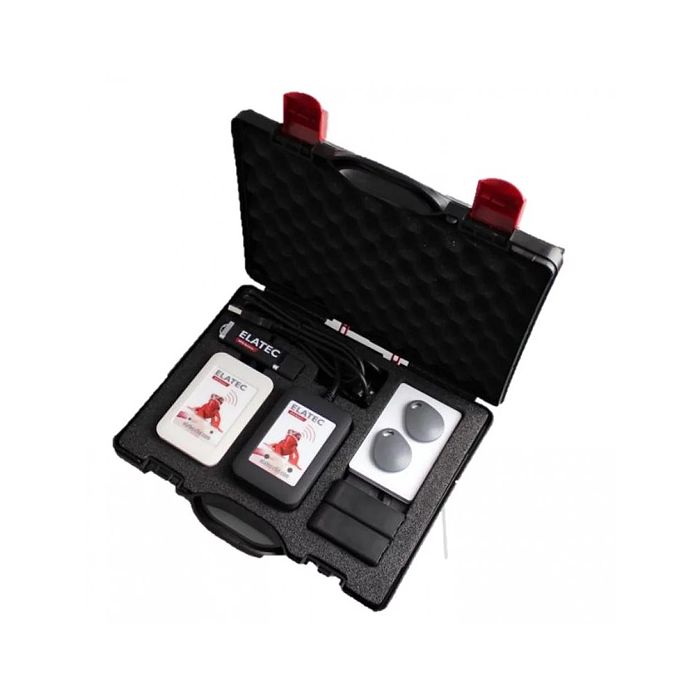

• Includes TWN4 MultiTech-PI & TWN4 MultiTech-P LEGIC 45 desktop readers, eighteen transponders in eight unique technologies, desktop reader mounting options with a snap-in holder and a mounting bracket, and a USB memory stick with SDK and documentation.
