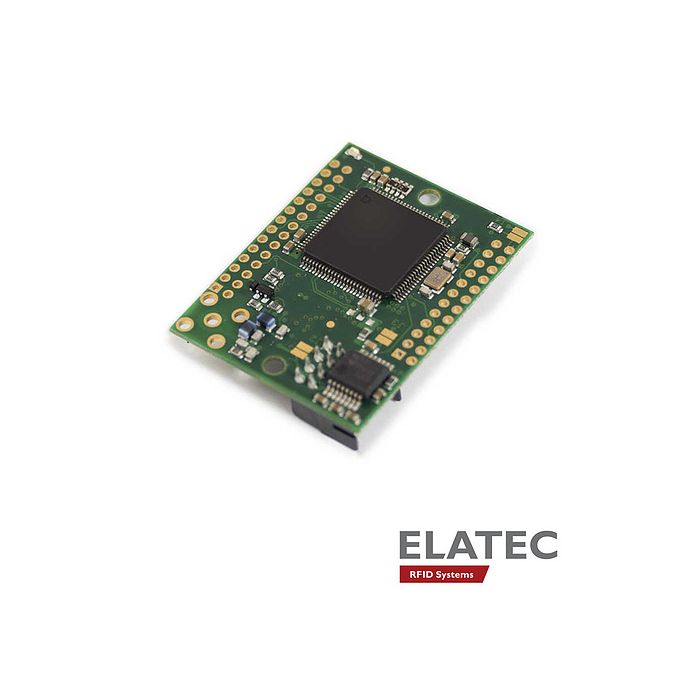

Elatec TWN3 Multi125 OEM Board

TWN3 Multi125

RFID Reader & RFID Writer TWN3 Multi125 USB/HID & USB/COM black Desktop

With this RFID device, the serial number of a transponder can be read out using the scripting function and, for example, certain segments can be written and read.
It is possible to send prefix and suffix characters (e.g. .#.) before or after the transmitted transponder data and to arrange / reorder transponder data.
Depending on the configuration, the RFID device is self-operating or acts according to your commands, so you can quickly and easily write or read transponders with the data you require
. The RFID device can be operated as a USB HID reader or configured as a virtual ComPort with full access to the transponders using the configuration software.
The TWN3 RFID reader / RFID writer for 125 kHz transponders is ideal for all desktop applications.

Application examples:

• Login/logout at terminals, PC, etc.
• Personnel time recording
• Access control
• Cashless payment
• Transportation, e-government and much more.

Supported transponders:

• EM4100, EM4102, EM4105, EM4200, EM4150, EM4350, EM4450
• FDX-B
• HITAG 1/2/S
• MIRO, Q5
• T5557, T5567, T5577
• TITANIUM, UNIQUE, ZOODIAC

Technical specification:

• Dimensions: 88mm x 56mm x 18mm
• Interfaces: USB or optional RS232 (RS-232 requires an external power supply)
• Power supply: 5V DC ± 10%
• Reading distance: up to 80 mm
• Temperature range: -45°C - +85°C
