Elatec TWN4 Palon Compact Panel LEGIC 42 Kit Bluetooth (BLE)

The TWN4 Palon Compact LEGIC 42 Panel is a versatile panel mount reader for integration into third party products and devices. It supports extended interfaces, in particular RS-485. The new Palon LEGIC Panel inherits all the advantages and integrated tool support of the ELATEC TWN4 family. The IP65 protected housing is easy to install.

TWN4 Palon Compact LEGIC Panel is a multi-technology reader/writer family that supports almost all 125 kHz/134.2 kHz and 13.56 MHz contactless technologies, including NFC. Integrated antennas for HF and LF enable excellent contactless performance. An integrated Bluetooth® Low Energy (BLE) module also supports a wide range of mobile ID and authentication solutions.

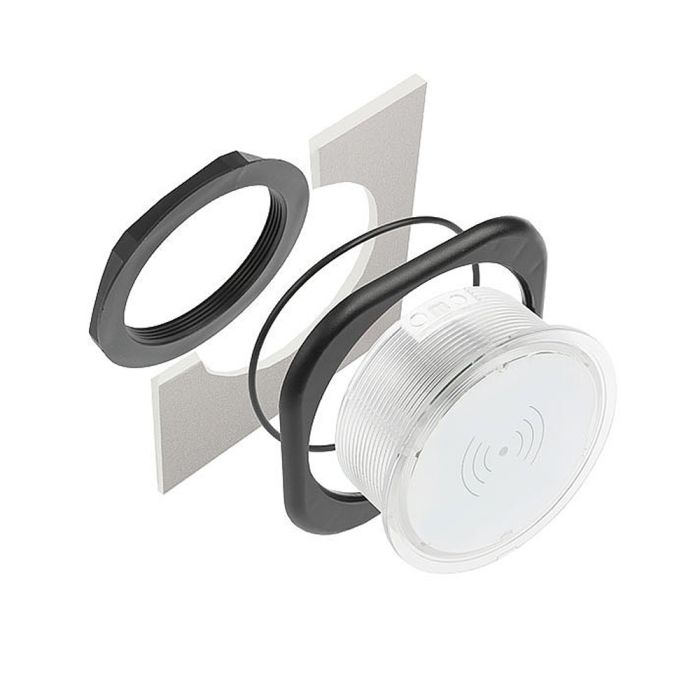

• Optimized housing design for easy, fast and secure installation


• Integrated LF and HF antennas


• One integrated SAM socket (Secure Access Module)


• Interfaces: RS-485, RS-232 and Wiegandor clock/data. OSDP protocol optional, USB


• Supports fast (re)configuration over the network and via the wireless interface with the TWN4 CONFIG card


• Direct chip command support


• Integrated BLE module 2.4 GHz for data communication and authentication, Bluetooth®v4.2, upgradeable


• Firmware update possible in the field+Powerful SDK for writing apps that run directly on the reader


• Onboard 18 kB flash memory, e.g. for storing user-accessible non-volatile data


• TWN4 upgrade card for P option available on request


• 3D design data (STEP) available on request
