Elatec TWN4 Palon Compact Panel Light Kit

The TWN4 Palon Compact Panel Light is a versatile panel mount reader for integration into third-party products and devices. It supports extended interfaces, in particular RS-485. The new compact Palon Panel includes all the benefits and integrated tool support of the ELATEC TWN4 family. The IP65-protected housing is easy to install.

TWN4 Palon Compact Light Panel is a multi-technology family of read/write devices that supports almost all 125 kHz/134.2 kHz and 13.56 MHz contactless technologies, including NFC. Integrated antennas for HF and LF enable excellent contactless performance.

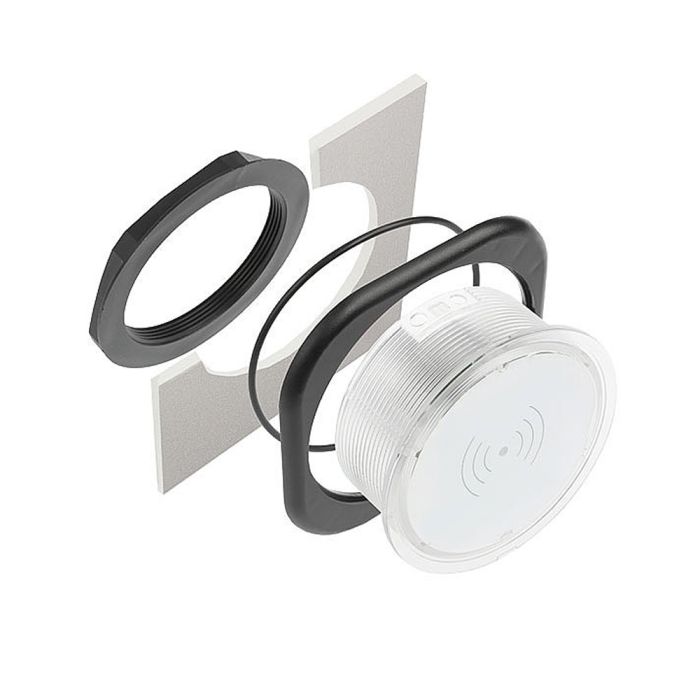

• Optimized housing design for easy, fast and secure installation


• Integrated LF and HF antennas


• One integrated SAM (Secure Access Module) socket


• Interfaces: RS-485, Wiegandor clock/data. OSDP protocol optional, USB


• Supports fast (re)configuration over the network and via the wireless interface with the TWN4 CONFIG card


• Direct chip command support


• Firmware update possible in the field


• Powerful SDK for writing applications that run directly on the reader


• Onboard 18 kB flash memory, e.g. for storing user-accessible non-volatile data


• TWN4 upgrade card for P and PI options available on request


• 3D design data (STEP) available on request
