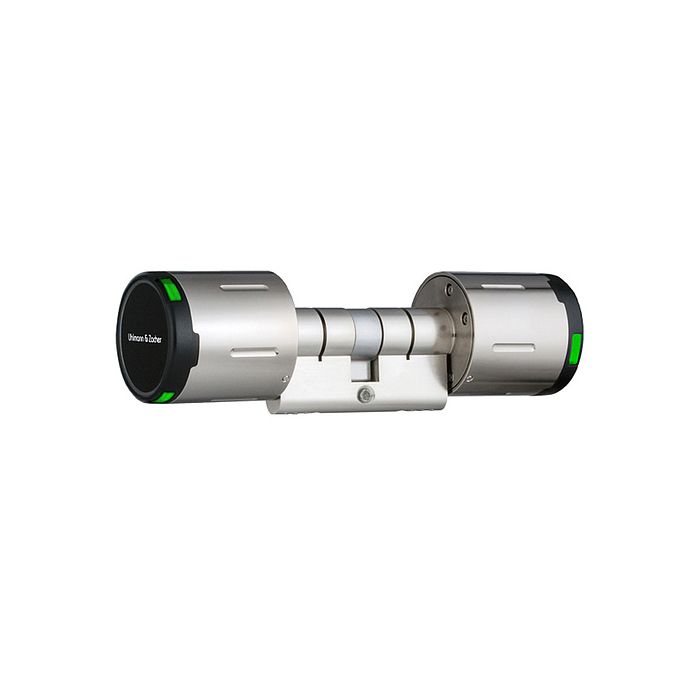

U&Z RFID Clex Prime locking cylinder CX6124
In stock
Description
Clex Prime CX6124The Clex CX6120 knob module is a universally applicable, battery-operated locking unit that is used here as follows: In a CX6710 profile cylinder, with two electronically free-turning knob modules on each side. Both sides can be electronically authorized separately. The communication electronics and mechatronics are located in the knob module together with the batteries. In addition to the proven radio version (868 MHz), the Clex knob module is also available as a version with Bluetooth® low energy (2.4 GHz). By installing the Clex knob module using a Euro profile cylinder, conventional locks for DIN Euro profile can be used and no complex installation is required. This means that the double knob cylinder can be used cost-effectively for both new buildings and existing properties. The power supply is provided by two conventional CR-2 lithium batteries. This means that up to 71,000 locking operations (depending on the transponder technology used) can be carried out. The battery management signals the last locking operations acoustically in 3 stages in advance, thus indicating when a battery change is required. Thanks to the low-power adapter, power can always be supplied from outside even when the battery is completely flat. A wide variety of transponder carriers can be used as keys on the Clex knob module. These include passive transponders (without power supply): ISO card CX6320, fob CX6330 and alternatively as active function transponder CX6362. The Clex knob module has the following extended system features:
|
