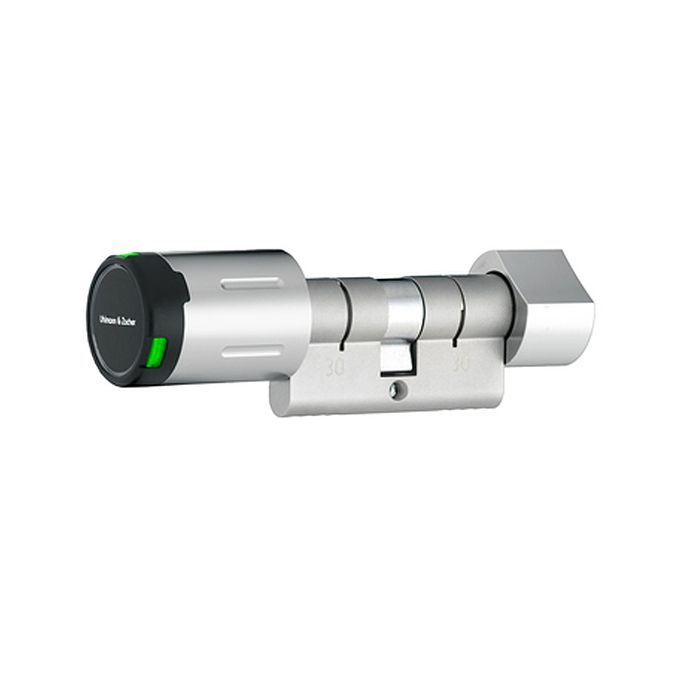

U&Z RFID locking cylinder Clex Prime CX6162

The Clex compact knob cylinder is a profile cylinder with an electronic freely rotating knob on one side and a mechanically fixed rotary knob on the other side.

All essential security-relevant components, such as the clutch, gear and motor, are located in the protected area of the cylinder. In addition to the proven radio version (868 MHz), the Clex compact knob module is also available as a version with Bluetooth® low energy (2.4 GHz).

The CX6162 is particularly suitable for tubular frame doors, as it has a small electronic knob and therefore allows sufficient clearance for opening the door even with small backsets.

The CX6162 security version is also equipped with special anti-drilling mechanisms. This makes the CX6162 particularly suitable for use in building entrance doors or other doors that require a higher level of mechanical burglary protection.

A wide variety of transponder carriers can be used as keys on the Clex compact knob module. These include Transponder card and transponder fob.

• Time switches/day release possible


• Permanent engagement (toggle function) possible


• Connection to the CX6934 IDS module possible


• The battery can be replaced/removed using a battery replacement tool to open the cover.


• Sealed, water-protected knob in housing up to protection class IP66 (depending on version)
