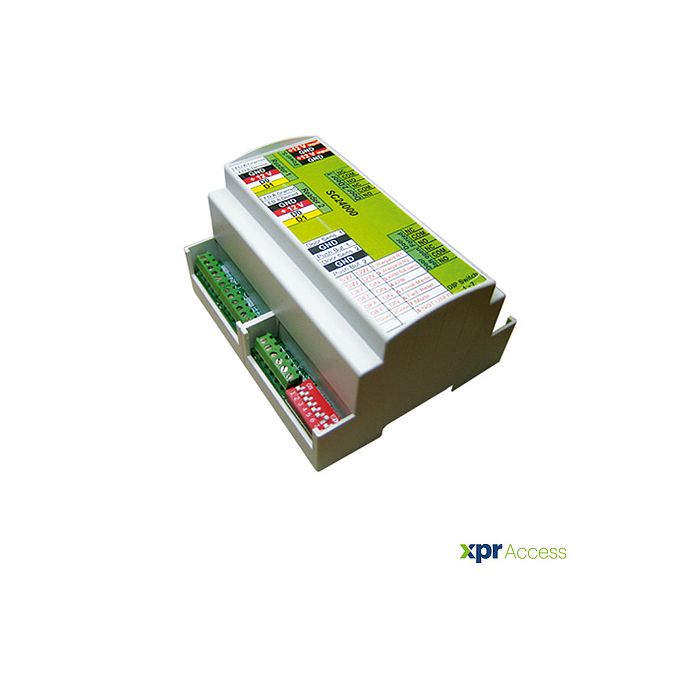

XPR SA/AP Controller for 2 Wiegand readers - 4000 users - Housing for top-hat rail

In stock

SKU XPR-ZUTR-CONT-07025
MPN SC24000
Description

XPR SA/AP

  • Key fob reading distance: PBX-1E (3 to 6 cm) - PBX2 or 2C (6 to 12 cm)
  • Relay: 2 relays (1 x 10 A & 1 x 2 A)
  • Master code (programming): 1
  • User tags/codes: 99 (transponder, PIN code, transponder and/or PIN code)
  • Relay switching time: On/Off or pulse switching from 1 to 99 seconds
  • Exit button inputs: 2 (1 per relay)
  • Memory: EEPROM (saves the programming even in the event of a power failure)
  • Green LED - Red LED: Potential-free
  • Orange LED: LED for programming the keypad
  • Keypad lock: for 30 seconds accompanied by beep after 8 consecutive incorrectly entered PIN codes
  • Buzzer: 1
  • Tamper protection: In the event of forced opening or breaking open
  • Power consumption: 15 mA in standby, 90 mA in operation
  • Operating voltage: Automatic selector 12-24 AC/DC
  • Codix bus: 3-wire Codix bus (+/-/datea); connection of up to 3 external readers up to max. 50m
  • External Codix readers: Keypads (LCS, INOX, VKP) - RFID readers (MINI-C...)
  • Mounting: Surface mounting
  • Buttons: Metal buttons with backlighting
More Information
Manufacturer number SC24000
